Synonyms: Perfluoroperhydrophenanthrene

CAS Number : 306-91-2

Description & Characteristics

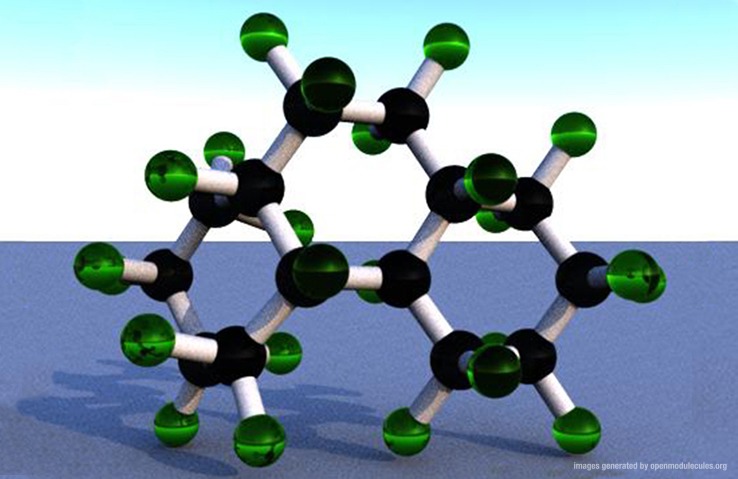

Perfluoroperhydrophenanthrene,C14F24, is a fully-fluorinated, odourless, colourless, non-volatile liquid with the following characteristics:

  • Compatibility with most construction materials
  • Excellent chemical and thermal stability
  • Non flammability
  • Practically non-toxic1
  • Applications

    Perfluoroperhydrophenanthrene finds many applications as a fluid for use in the electronics industries, including vapour phase soldering, condensation inert heating, fluid for testing and direct contact cooling.

    Safety, Handling and Storage

    Although Perfluoroperhydrophenanthrene is considered biologically and chemically inert, good laboratory practice should be observed when handling.  Perfluoroperhydrophenanthrene has an indefinite shelf life if properly stored in its original sealed container.  Safety data sheets are available on request.

    Typical Physical Properties
    Boiling Point ℃ 215
    Pour Point ℃ -20
    Molecular Weight 624
    Density, kg/l 2.03
    Viscosity (kinematic), mm2/s 14
    Viscosity, (dynamic), mPas   28.4
    Surface Tension, mN/m 19
    Vapour Pressure, mbar <1
    Heat of vaporisation at Boiling Point, kj/kg 68*
    Specific Heat, kj/kg ℃


    Critical Temperature, ℃ 377*
    Critical Temperature, oK 650*
    Critical Pressure, bar 14.6*
    Critical Volume, l/kg 1.58*
    Resistivity ohm.cm >1013
    Dielectric Breakdown Strength kV/mm 50Hz >13
    Thermal Conductivity, mW/m ℃ 52.6*
    Expansion Coefficient, ℃-1(0℃) 0.00075

    Temperature dependant properties are quoted at 25℃ unless otherwise stated. The above typical physical properties, in no way form or represent product specification.
